This guide provides a set of SQL queries and tips that improve the performance of ManageEngine SupportCenter Plus.

The list of performance tips discussed in this guide are:

• Java Tuning


• Enabling MS SQL Snapshot Mode


• Disable Request Count


• Disable Request Refresh Timer


• Disable All Requests filter


• Decrease the number of requests in List View


• Disable Short Description Search


• Cleanup Recent Item Limit


• Cleanup Error Log Limit


• Cleanup ACC Session


• Delete System Generated Notifications


• Increase User Cache Count


• Increase Technician Cache Count


• Increase Message IDs Cache Count


• Increase E-mail IDs / User IDs Cache Count


• Log File Size Threshold Violation (MS SQL): Best Practices

Java Tuning

It is required to have a 64bit server machine. The default configuration settings in wrapper.conf is sufficient. However, in a large data environment, set the max heap size as follows,

# Maximum Java Heap Size (in MB)

wrapper.java.maxmemory=4096


Enabling MS SQL Snapshot Mode

We can enable the Read committed Snapshot in the MS SQL environment to increase the performance of the application. It creates a snapshot or read-only database of your current results that is separate from your live database. So when you run a SELECT statement, to read your data, you are reading from a read-only copy of your database. When you change your database, it happens on the live database, and then a new copy or snapshot is created for reading against.

How to enable read committed snapshot isolation (RCSI)

All MS SQL databases usually have lock issues, which may affect an application’s optimal performance. To avoid such performance issues in SupportCenter Plus, enable the read committed snapshot isolation (RCSI) by following these steps:

1. Stop SupportCenter Plus.


2. Log in to SQL Management studio.


3. Take the SupportCenter Plus database offline by executing the following.

USE master
GO
ALTER DATABASE <db_name> SET OFFLINE WITH ROLLBACK IMMEDIATE
GO


4. Enable the read committed snapshot by running the following.

ALTER DATABASE <db_name> SET READ_COMMITTED_SNAPSHOT ON WITH ROLLBACK IMMEDIATE
GO


5. Bring the database online using the following.

USE master
GO
ALTER DATABASE <db_name> SET ONLINE
GO


6. Check if you have enabled RCSI successfully by running the following query.

SELECT is_read_committed_snapshot_on FROM sys.databases WHERE [name] = '<db_name>'

For more information on MS SQL databases and RSCI, go here.

Benefits of enabling the MS SQL Snapshot Mode

• Simultaneous user querying of database will be possible without any delay or disruption (although load on application might exceed the usual limits).


• User querying records will be maintained in a separate tempdb, which will not be affected by other user queries occurring in parallel or subsequently.


• Database tables will be uploaded only after a transaction reaches completion.

Disable Request Count

The Request Count displays the total number of requests in the request list view. Larger the request count value, the longer it takes to display the requests in the list view page.
The request count value cannot be removed. Instead you can choose to view the request count, by clicking a Row Count button in the request list view page.

To show the Row Count button, use the query below.

update GlobalConfig set PARAMVALUE='FALSE' where CATEGORY='PERFORMANCE' and PARAMETER='SHOW_REQUEST_COUNT';

Disable Request Refresh Timer

The Refresh Timer refreshes the request list view at regular intervals. But this can slow down the performance. You can disable the Refresh Timer option by using the query below.

update GlobalConfig set PARAMVALUE='FALSE' where CATEGORY='PERFORMANCE' and PARAMETER='SHOW_WO_REFRESH_TIME';

Disable All Requests filter

The 'All Requests' filter in the request list view displays all the requests that have been created so far, irrespective of the status. But as the number of requests increases, the performance of the application is affected.

In this case, you can remove the 'All Requests' option from the filter drop-down using the query below.

update GlobalConfig set PARAMVALUE='FALSE' where CATEGORY='PERFORMANCE' and PARAMETER='SHOW_ALL_REQUEST_VIEW';

Decrease the number of requests in list view

In request list view, you would find a drop-down menu to select the number of requests to view per page. Limiting this number to 25 or 50 would eliminate loading of requests and improve the performance.

Disable Short Description Search

Short Description refers to the description which appears when you hover over the subject link of the request in the request list view. By default, while performing a search operation, the short description of a request would be searched. But when you have large amount of data, the performance of the application is affected.

You can disable this feature by using the query below.

update GlobalConfig set PARAMVALUE='false' where CATEGORY='SearchShortDescription' and PARAMETER='Status';

Cleanup Recent Item Limit

By default, the recent items list is deleted once in every 15 days. Increasing the cleanup frequency improves the performance.

If you want to clean up the Recent Item list every 5 days, then use the query below.

update GlobalConfig set PARAMVALUE=5 where CATEGORY='CLEANUP_TASK' and PARAMETER='CLEANUP_RI_LIMIT';

The maximum limit for cleaning up the recent item list is 90. If you want to disable the cleanup, then set the parameter value as -1.

Cleanup Error Log Limit

By default, the error log list is deleted once in every 180 days. But you can increase the cleanup frequency to accelerate the backup process.

If you want to clean up the Error Log list every 30 days, then use the query below.

update GlobalConfig set PARAMVALUE=30 where CATEGORY='CLEANUP_TASK' and PARAMETER='CLEANUP_ERROR_LOG_LIMIT';

The maximum limit for cleaning up the error log list is 365. If you want to disable the cleanup, then set the parameter value to -1.

Cleanup ACC Session

It is a table containing the session details i.e., the logged in and logged out information. These entries are not used by the application and can be removed periodically for better database performance. By default, the session details are deleted once in every 90 days but for better performance, you can increase the cleanup frequency.

If you want to cleanup the ACC Session every 30 days then use the query,

update GlobalConfig set PARAMVALUE=30 where CATEGORY='CLEANUP_TASK' and PARAMETER='CLEANUP_ACC_SESSION_LIMIT';

The maximum limit for cleaning up the ACC session details is 365. If you want to disable the cleanup, then set the parameter as -1.

Delete System Generated Notifications

System Generated Notifications are notifications generated and sent by the system. You can either delete all the system notifications or manually check the notifications to delete.

If you want to delete all the system notifications then execute the query,

delete from notification where senderid=1;

To get the list of notification titles to delete unwanted notifications, execute the query,

select notificationtitle from notification limit 100;

If the notificationtitle is 'has been added to the group', then use the query below to delete notifications under this title.

delete from notification where notificationtitle like '%has been added to the group%';

Increase User Cache Count

By default, the number of user data objects that would be cached is 500. But in case of high-end machines with better RAM configurations, this value can be increased to cache more data for quick response.

If you want to increase the cache count to 1000, then use the query below.

update GlobalConfig set PARAMVALUE='1000' where PARAMETER='USER_CACHECOUNT';

Increase Support Rep Cache Count

By default, the number of support rep data objects that would be cached is 300. But in case of high-end machines with better RAM configurations, this value can be increased to cache more data for quick response.

If you want to increase the cache to 1000, then use the query below.

update GlobalConfig set PARAMVALUE='1000' where PARAMETER=TECHNICIAN_CACHECOUNT';

Increase Message IDs Cache Count

By default, the number of Message IDs that would be cached is 1000. But in case of high-end machines with better RAM configurations, this value can be increased to cache more data for quick response.

If you want to increase the cache count to 2000, then use the query below.

update GlobalConfig set PARAMVALUE='2000' where PARAMETER='MESSAGEID_CACHECOUNT';

Increase E-mail IDs / User IDs Cache Count

By default, the number of E-mail IDs / User IDs that would be cached is 1000. But in case of high-end machines with better RAM configurations, this value can be increased to cache more data for quick response.

If you want to increase the cache count to 2000, then use the query below.

update GlobalConfig set PARAMVALUE='2000' where PARAMETER='EMAIL_USERID_CACHECOUNT';

Log File Size Threshold Violation (MS SQL): Best Practices

The recovery model of a database defines how transactions are logged and retained. There are 3 recovery models in use: Simple, Full, and Bulk Logged. Here, we will discuss only Simple and Full models.

In SQL Server, transaction log files, when not backed up regularly, can grow and cause a database failure because the recovery model, by default, is Full.

To prevent this scenario, DBAdmins can perform:

a) Full recovery model with regular transaction log backups

or

b) Set the database recovery model to Simple.


Full Recovery Model with transaction log backup

  In the Simple recovery model, point in time recovery is not possible, whereas it is possible in the Full recovery model.

Therefore, in a production environment, configure your database with the Full recovery model, so that a point in time recovery option is easily available.

Follow these steps to create a backup log file:

In SQL SERVER Management Studio, execute the following query:

BACKUP LOG [<db-name>]
TO DISK = N'<location>\scp-backup.trn'
WITH NOFORMAT, NOINIT,
NAME = N'<db-name>-Full Log Backup'

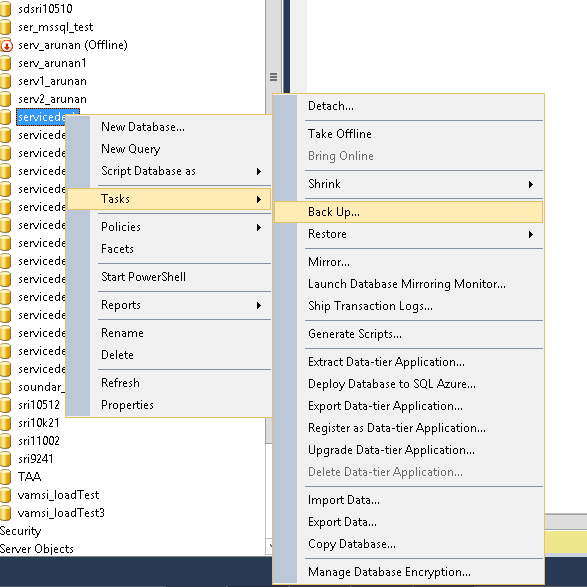

In SQL SERVER Management Studio, right-click the database that you want to back up, click Tasks>>Back Up.

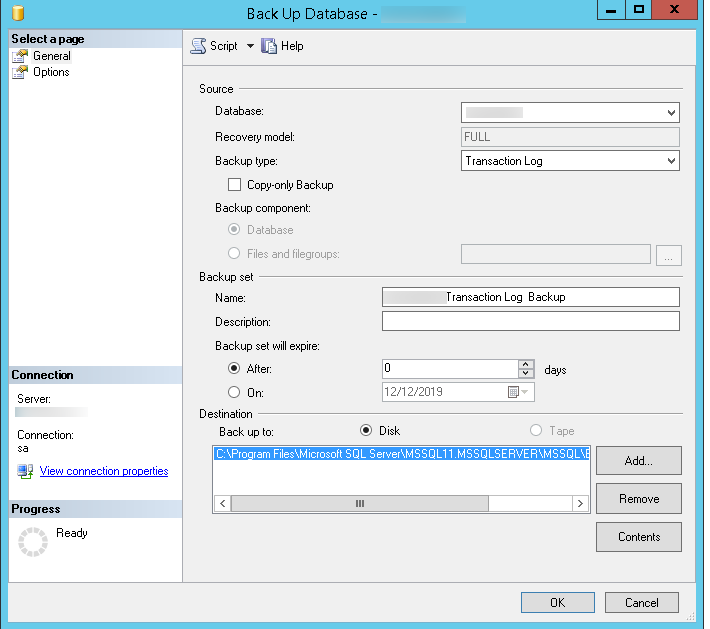

In the Back Up Database dialog box, select the Backup type as Transaction Log, under Name, type the name of the backup set, and then click Add.

In the Back Up Database dialog box, under Destination, select Disk, choose the path by clicking Add, and click Ok.

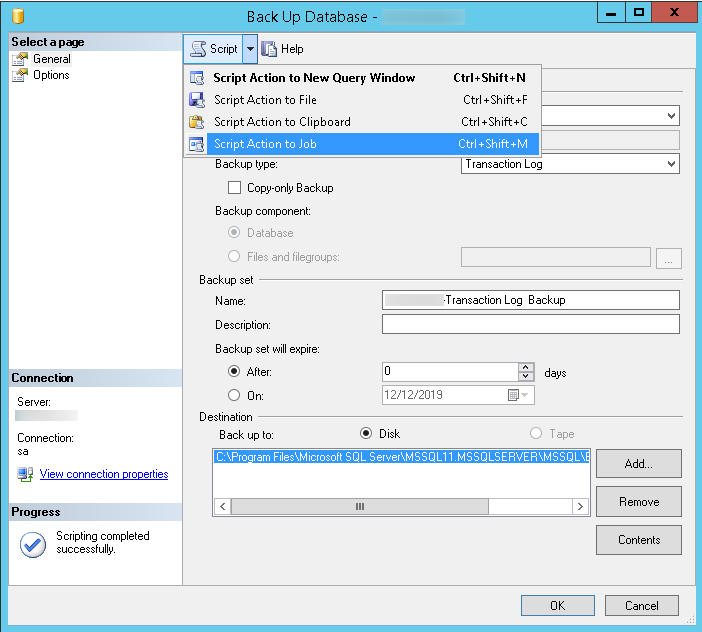

In the Script list, click Script Action to Job.

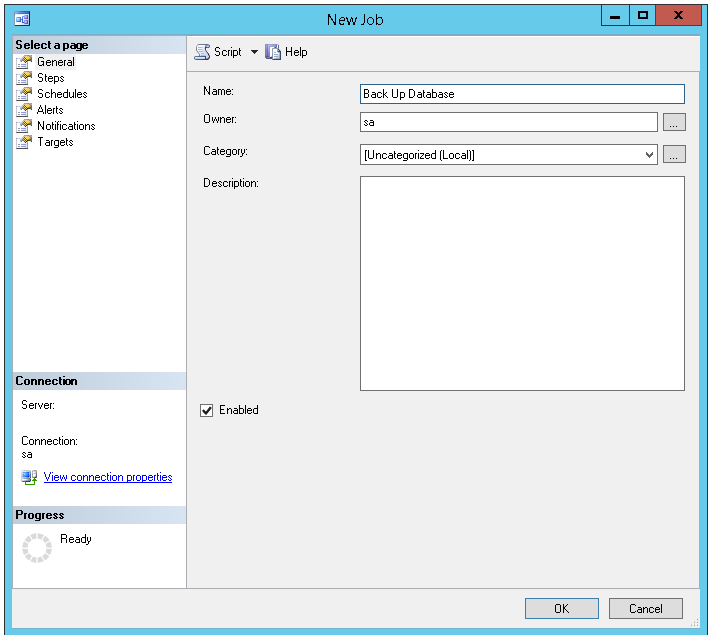

Provide a name.

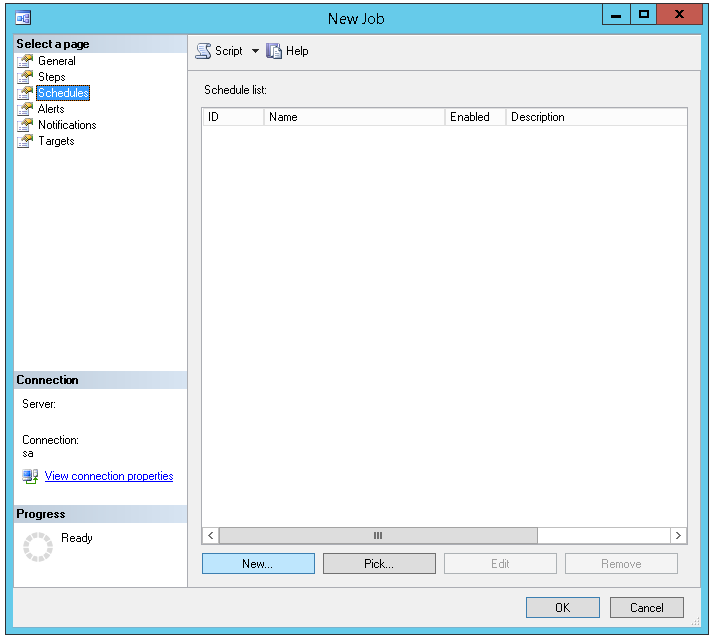

From the left panel, click Schedules, and then click New.

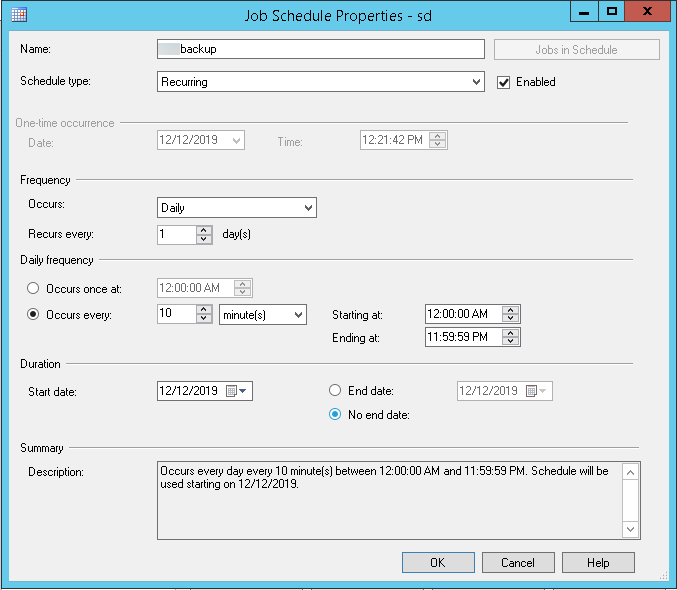

In the Job Schedule Properties dialog box, type the job name in the Name box and provide the following values:

• Under Frequency, select Occurs daily and Recurs 1 day.


• Under Daily frequency, select Occurs every 10 minutes and Starting at 12:00AM and Ending at 11:59PM.


• Under Duration select start date as the current date and choose no end date.


Simple Recovery Model


In SQL SERVER Management Studio, execute the following query:

USE [master]
GO
ALTER DATABASE <db-name> SET RECOVERY SIMPLE WITH NO_WAIT
GO

In SQL SERVER Management Studio

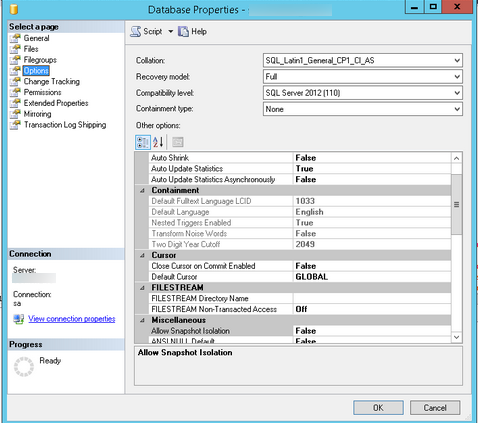

Step 1: Right-click Database>>Properties.

Step 2: Choose Options in select page and change the recovery model.

Note that in the simple recovery model, point in time recovery is not possible.

Log File Shrinking

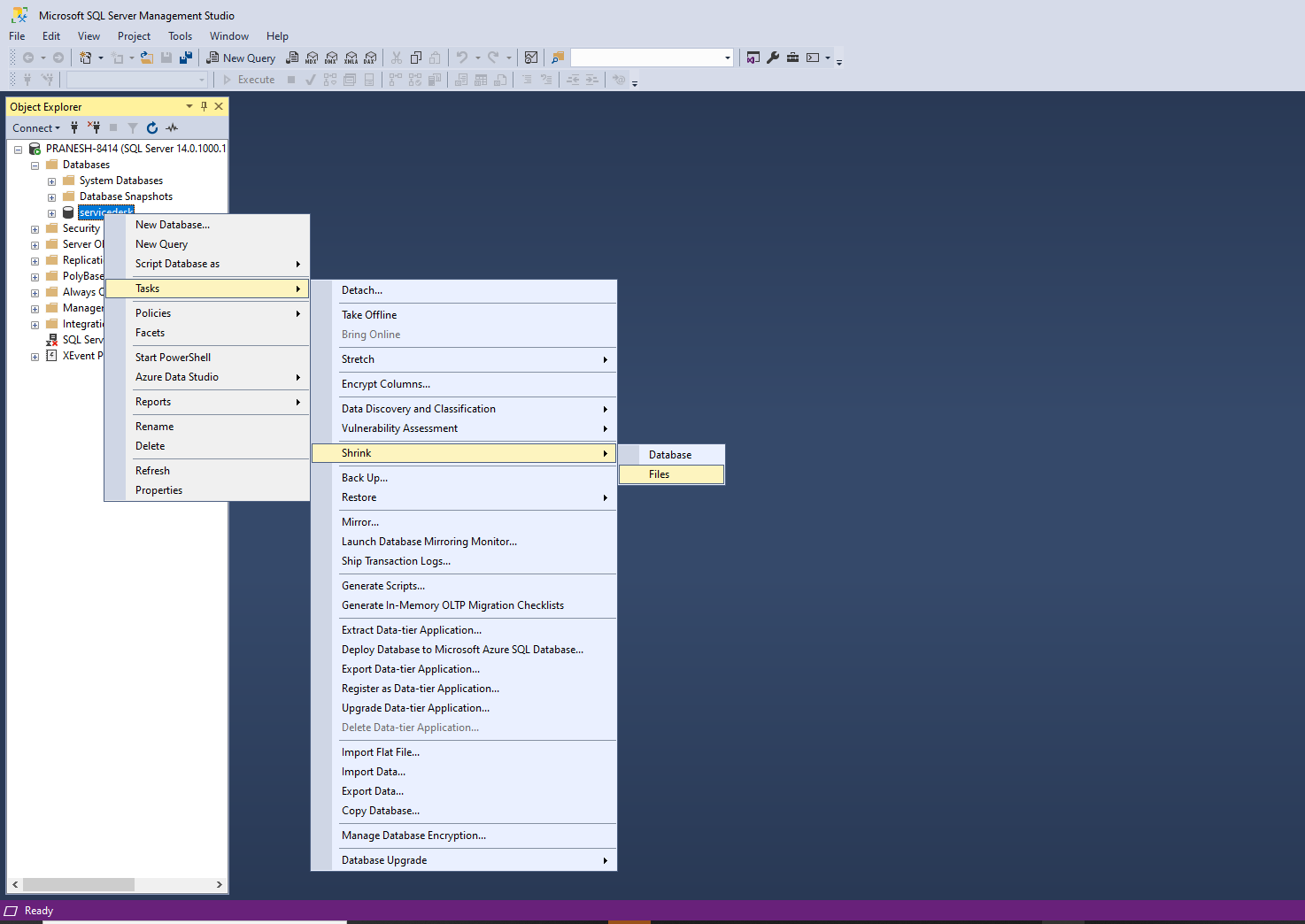

In the SQL Server Management Studio, right-click your database, go to Tasks -> Shrink -> Files.

2. In the Shrink File dialog box, do the following.

• Under Database files and filegroups choose File type as Log.


• Under Shrink action choose Release unused space.


3. Click OK to start shrinking the log file.
