Configuring GSuite as the Authentication Server

To configure G Suite as the authentication server,

• Log in to console.developers.google.com.

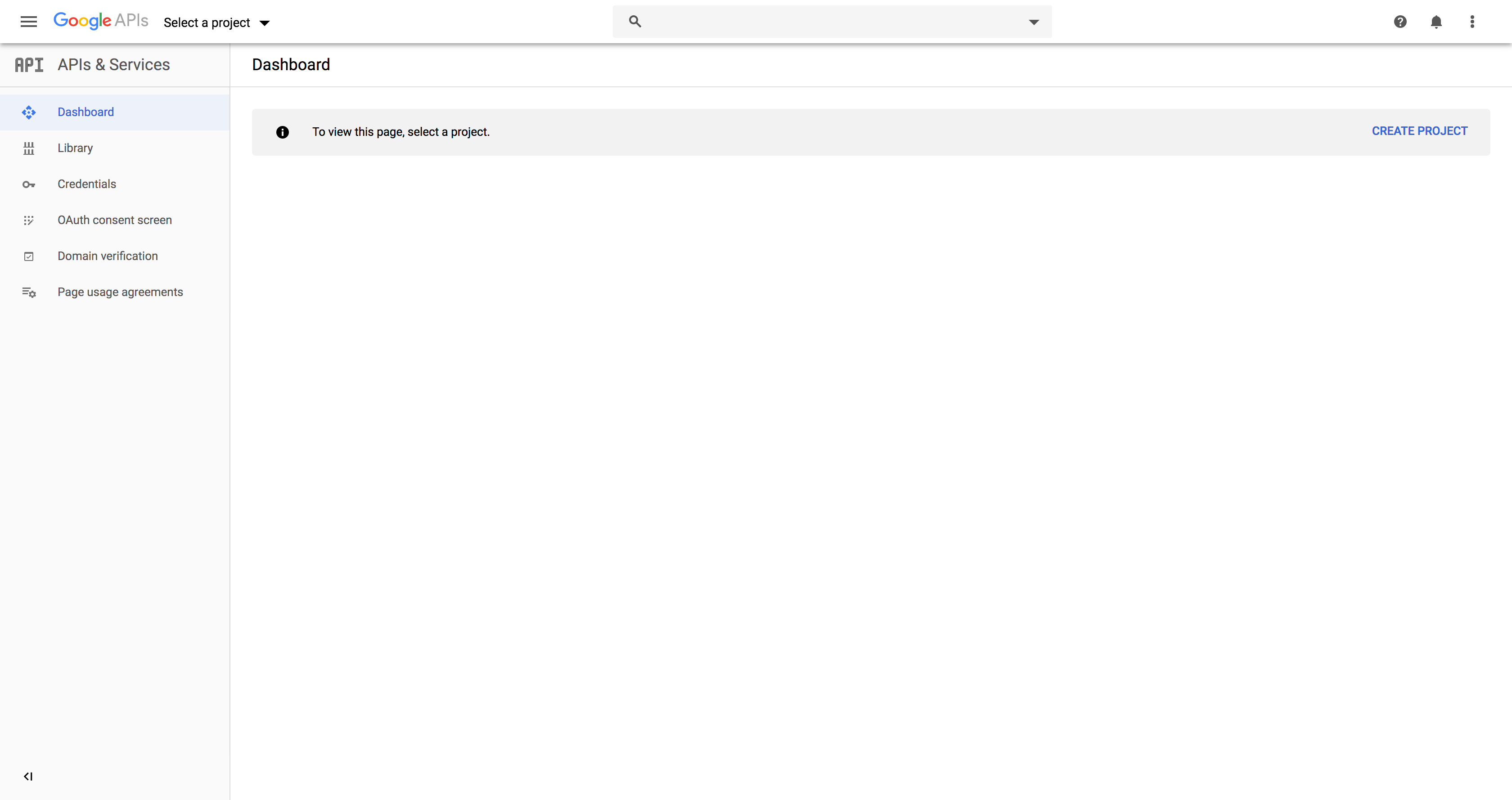

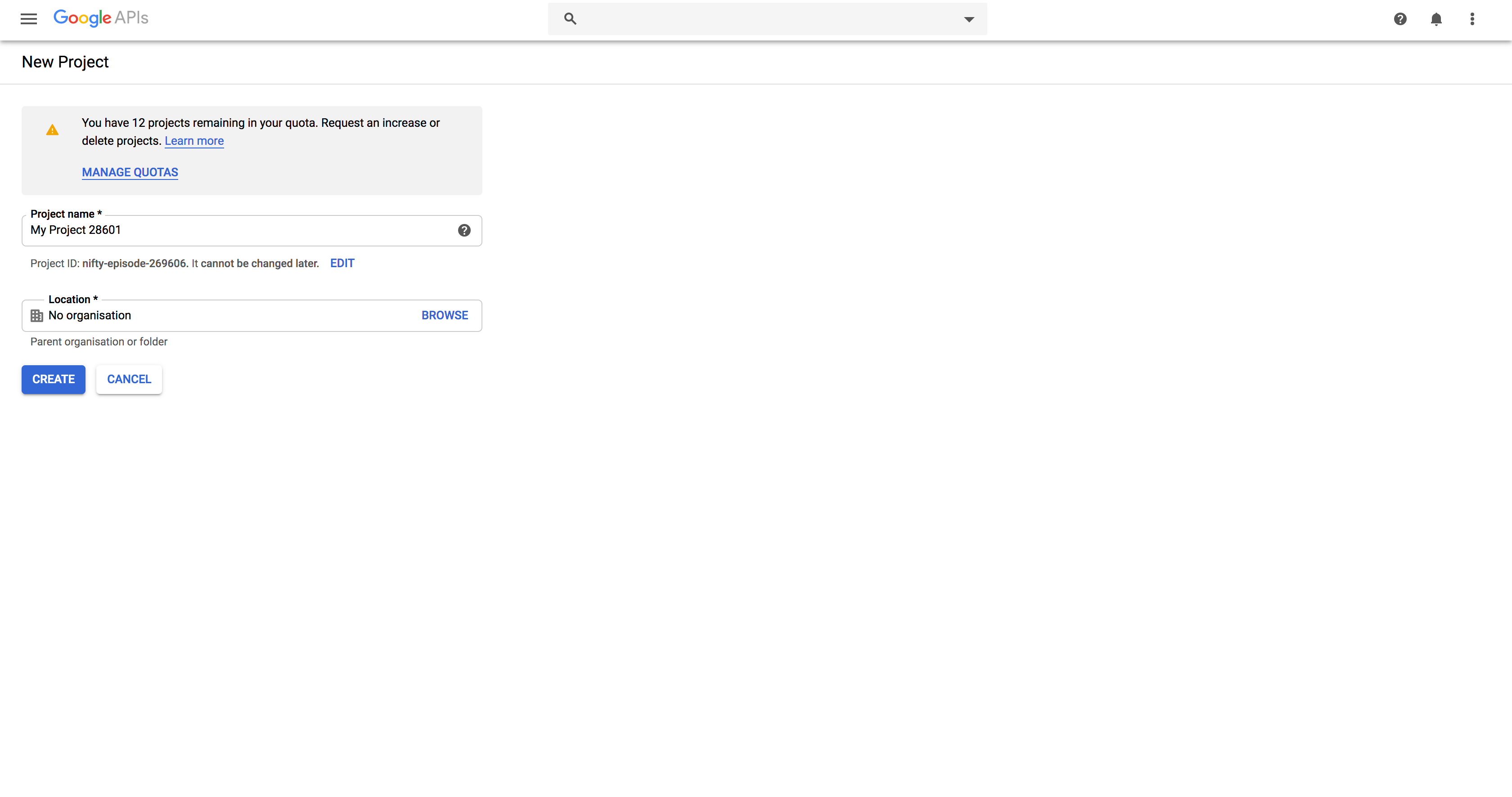

• In the dashboard, click Create to create a new project.


• Enter the Project Name.

• Under Location, click Browse and select the parent organization.


• Click Create.

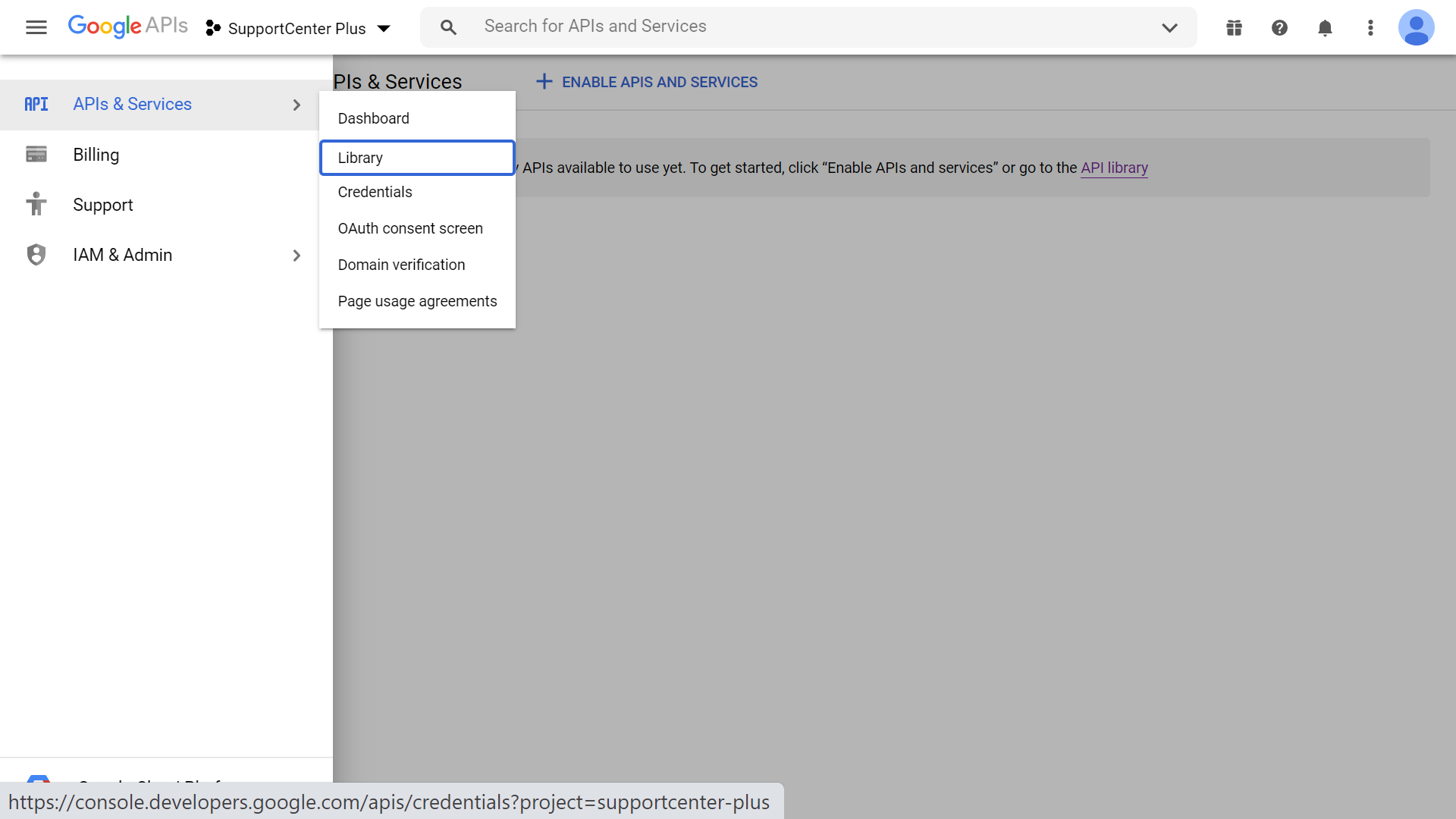

• In the left panel of the displayed project details page, click APIs & Services >> Library.

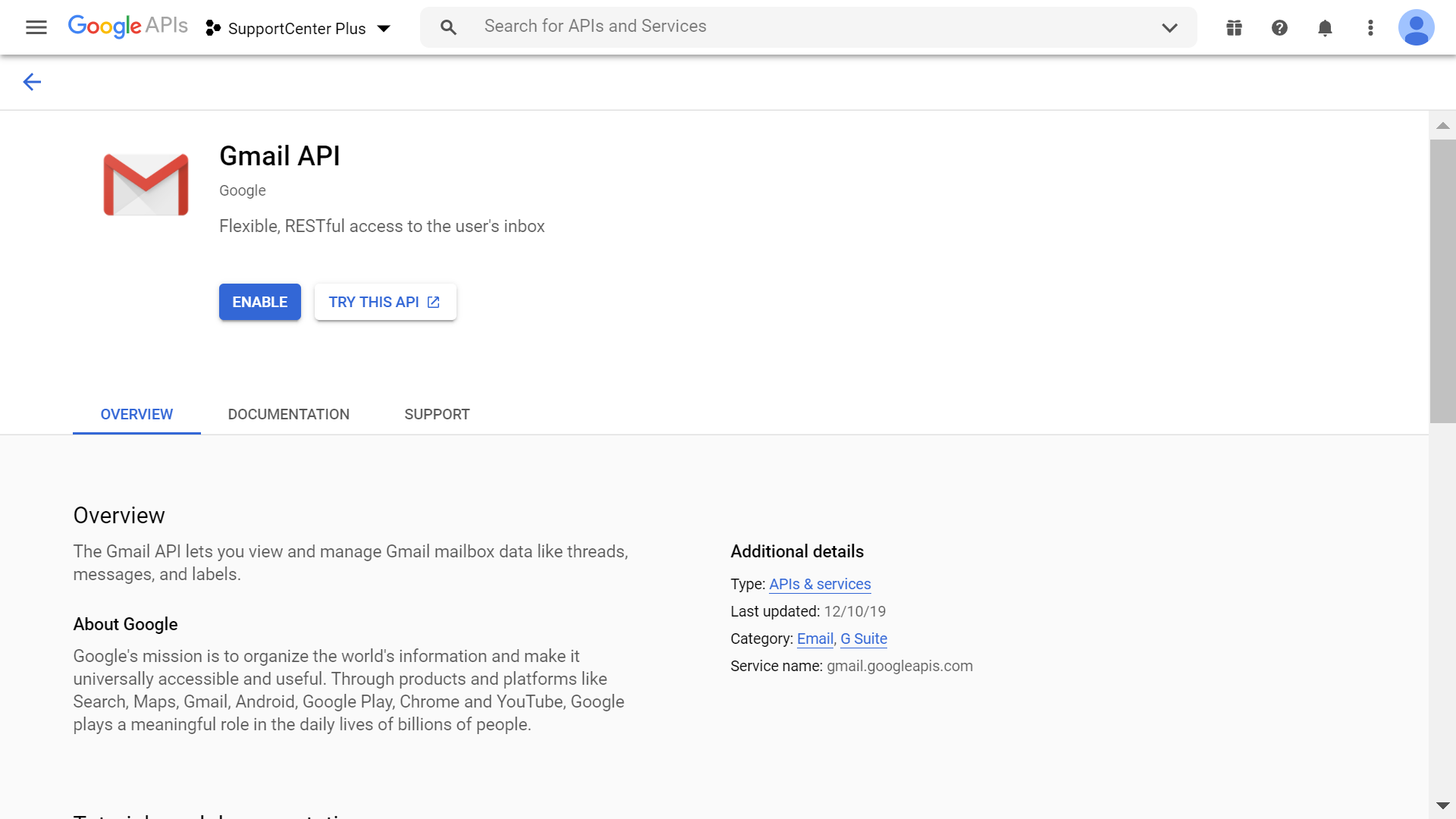

• From the available list of APIs, select Gmail API and click Enable. You can use the search option for quicker results.

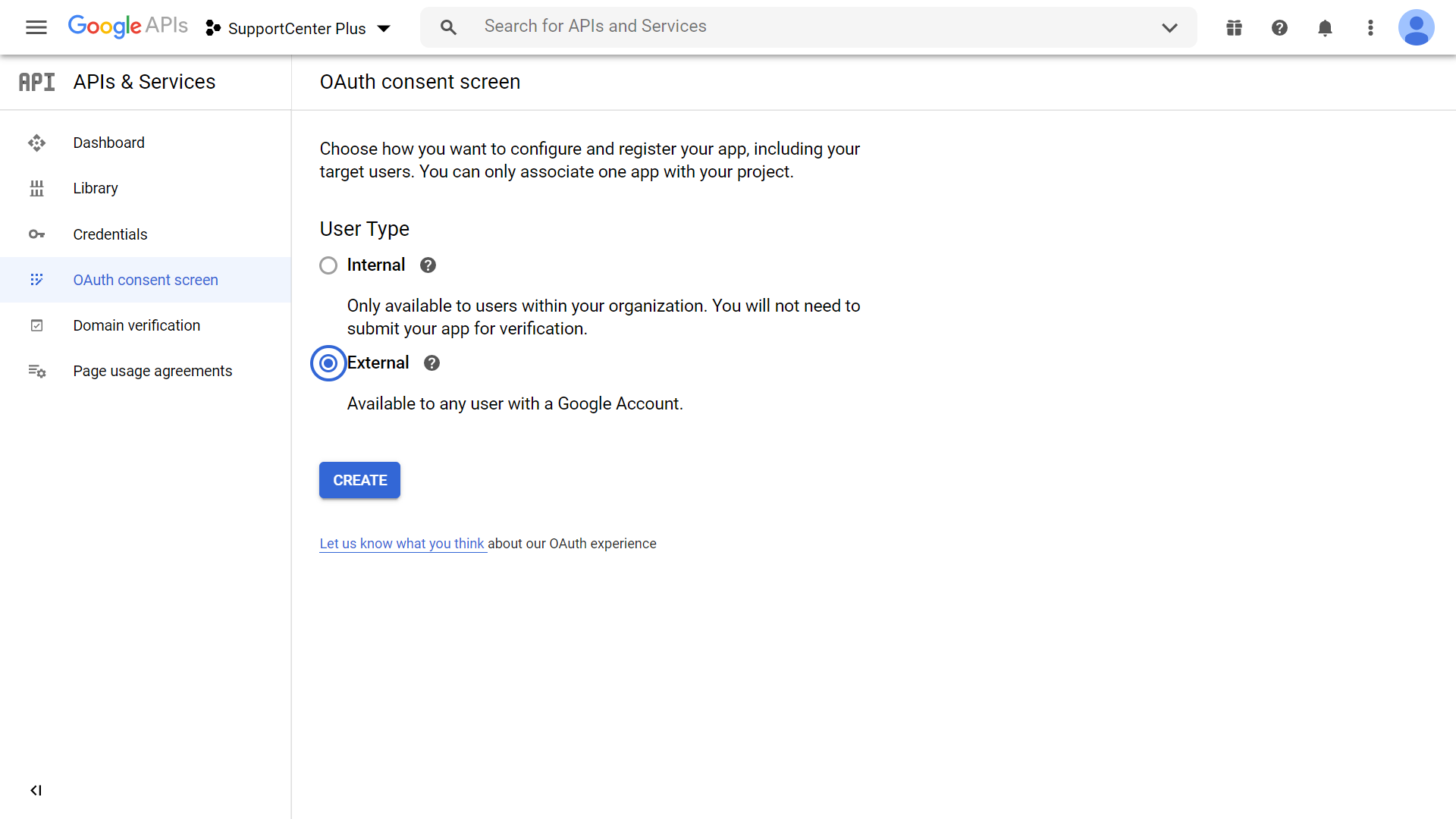

• In the left panel, click OAuth consent screen and choose the User Type.


• Click Create.

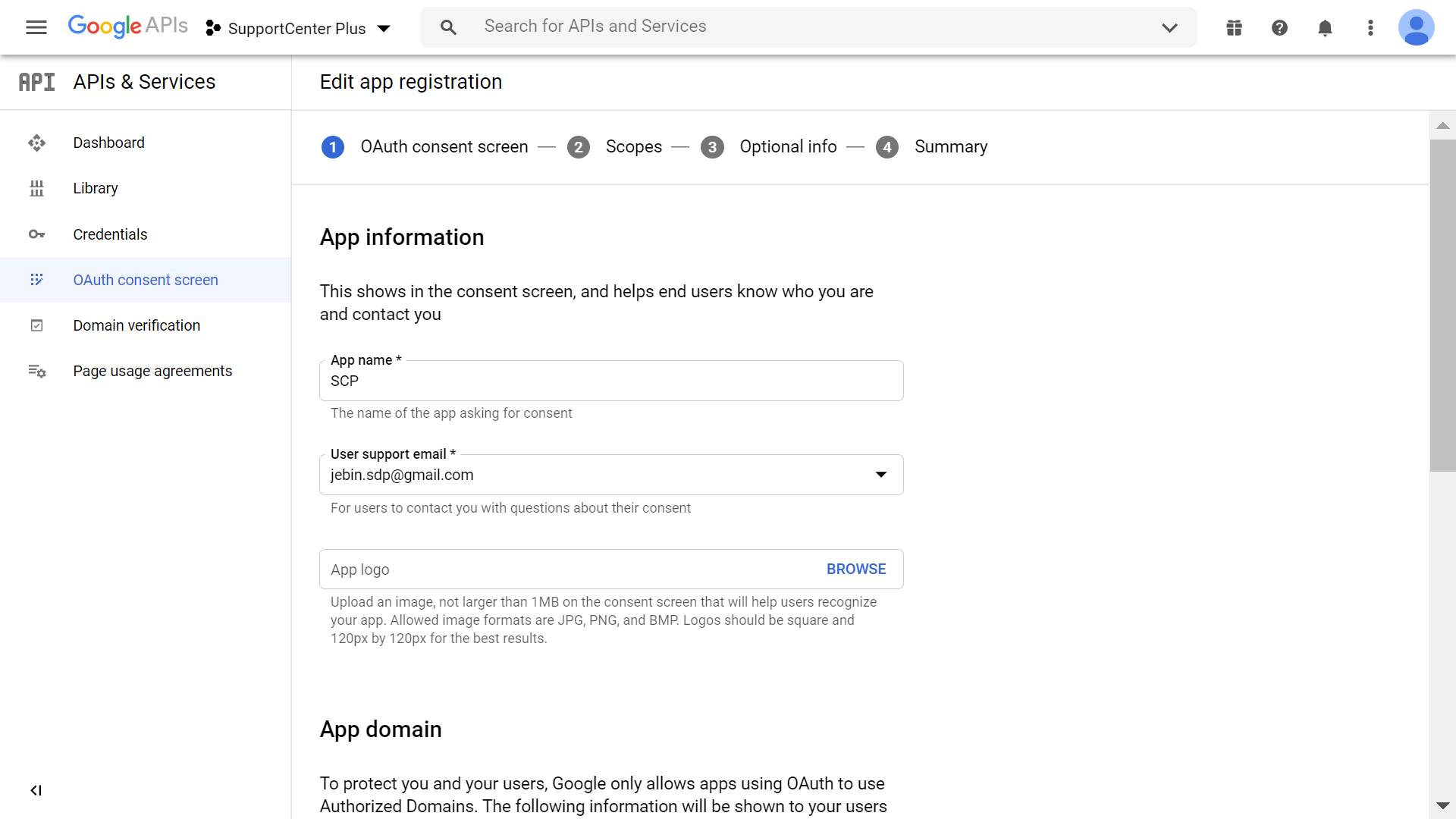

• In the displayed page, provide the Application Name, Application Logo, and Support email of your help desk.

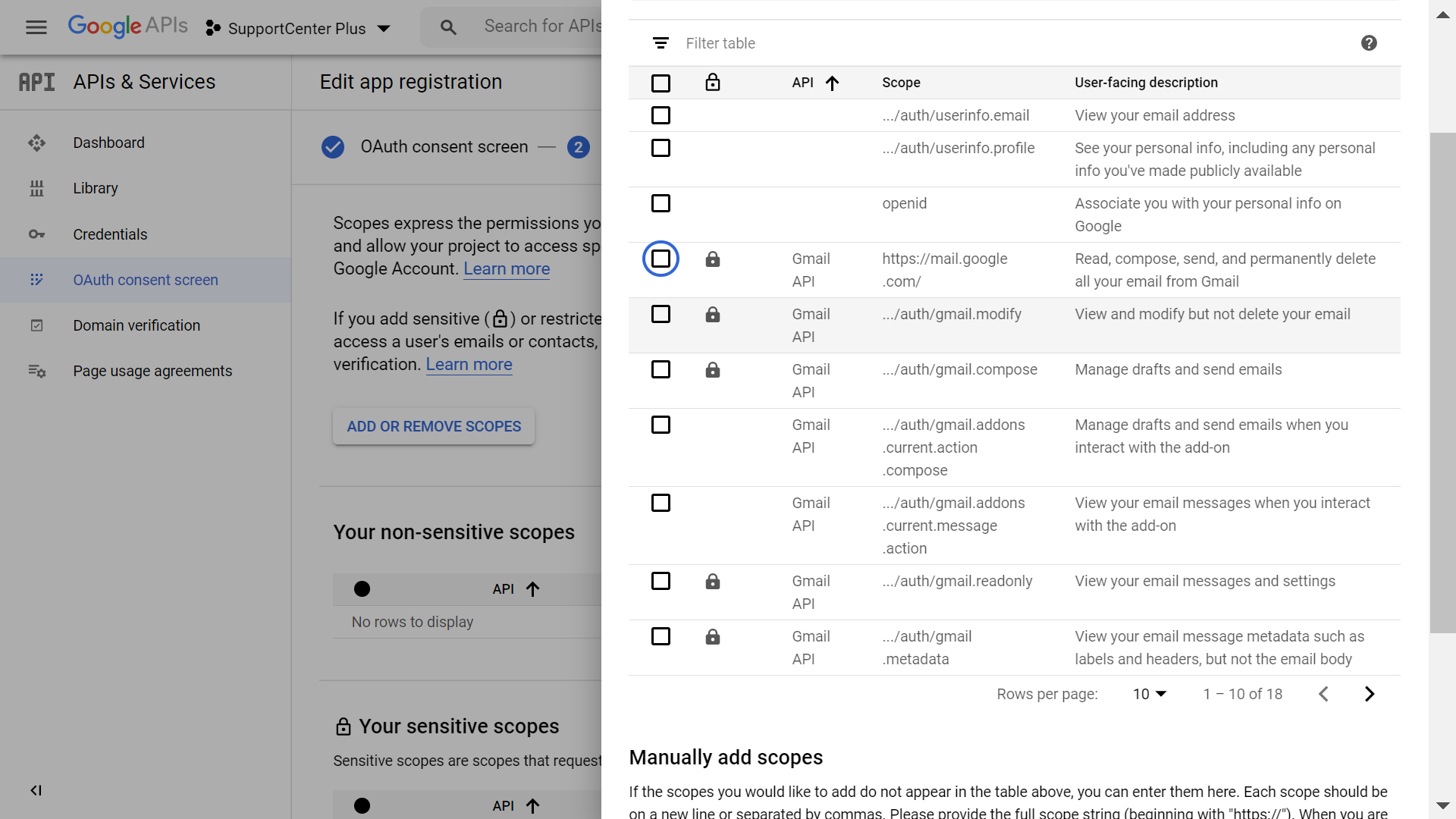

• Click Add Scope and choose Gmail API.


• Click Add.

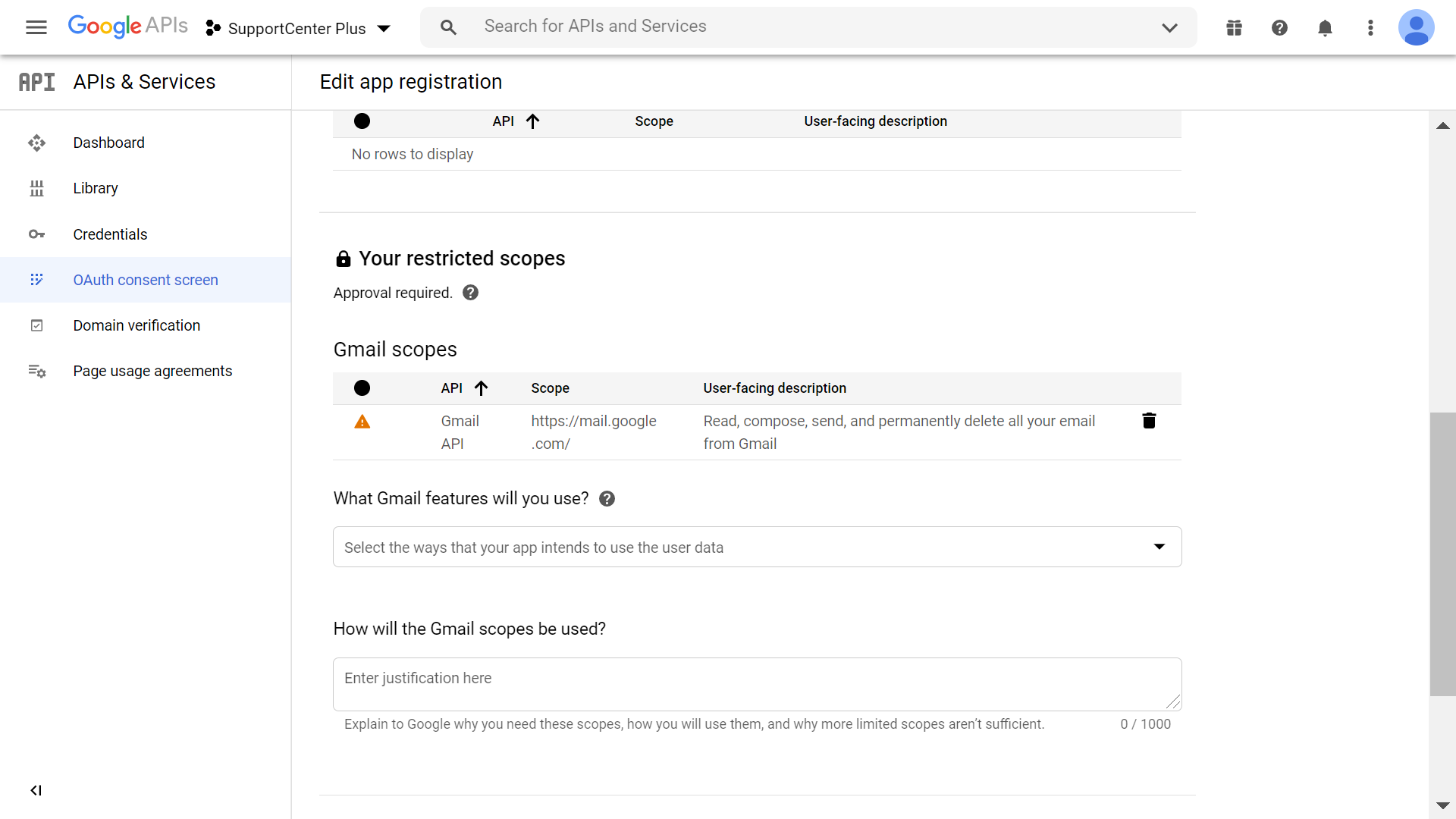

• The scope will be displayed as shown in the below screenshot. Copy the scope to SupportCenter Plus.


• Click Save.

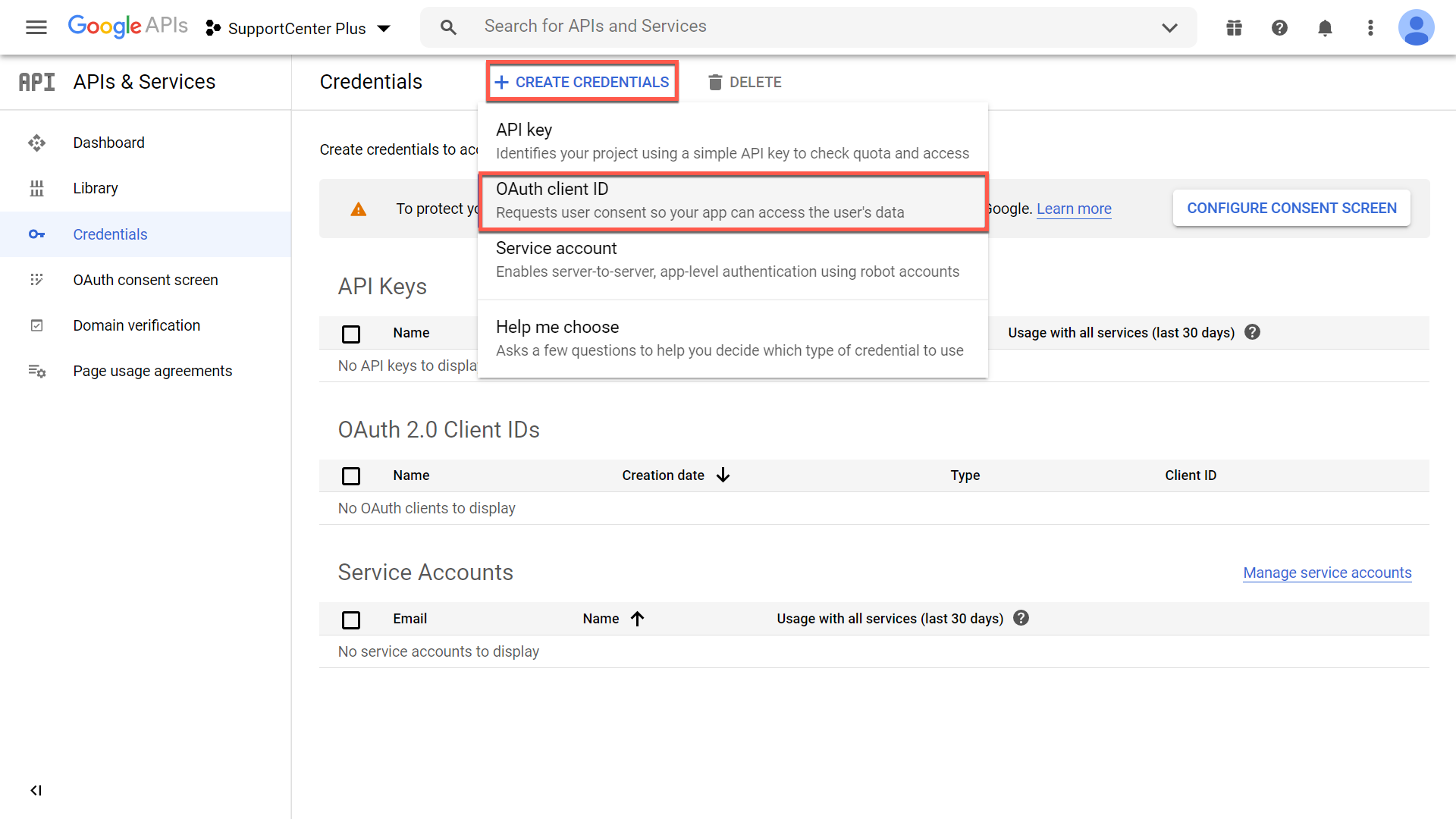

• In the left panel, click Credentials >> Create Credentials >> OAuth Client ID.

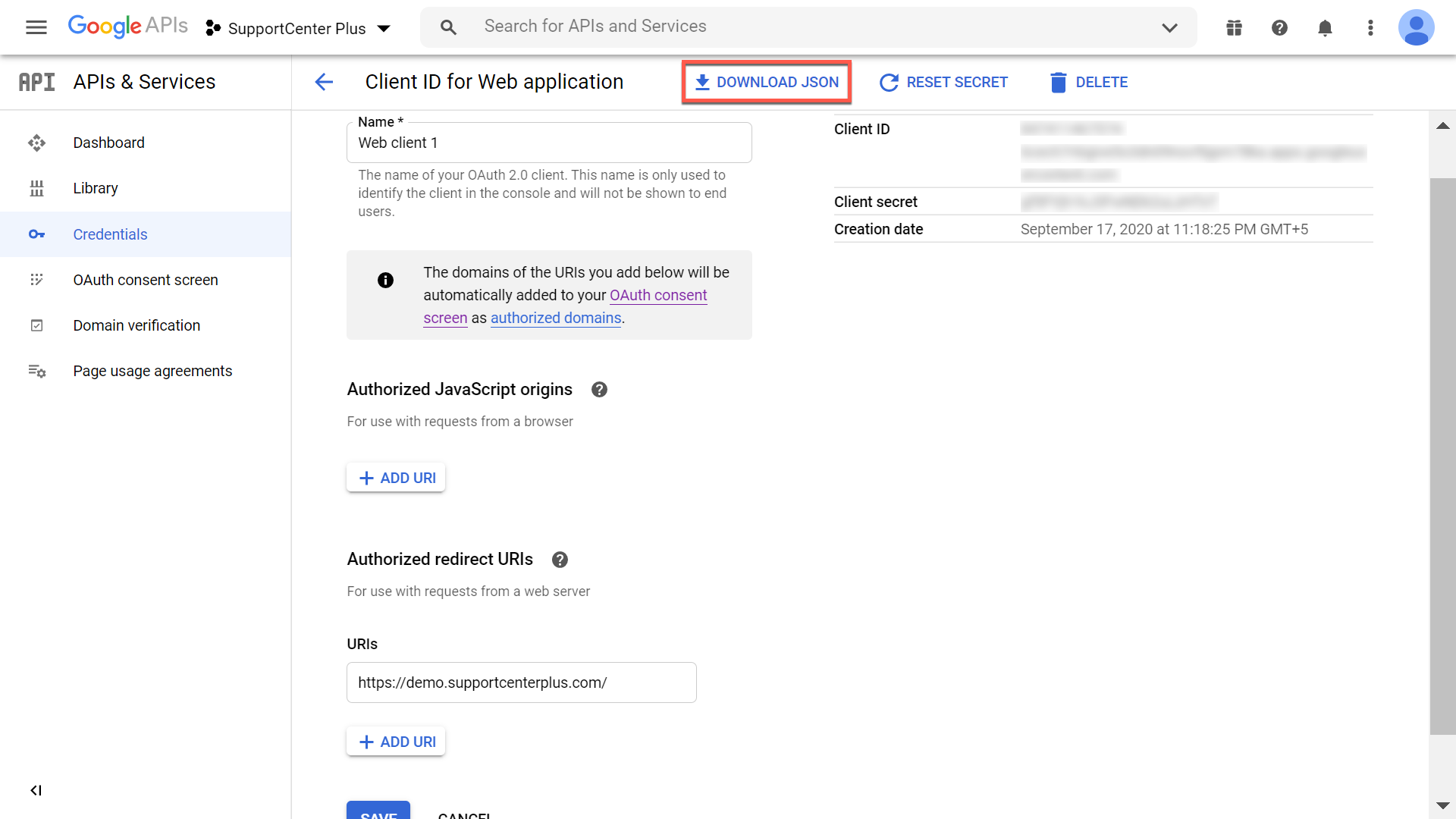

• Click DOWNLOAD JSON to download the file containing the authorization server details. Copy these details to Client Details in SupportCenter Plus.

• Provide a Name of your choice.

• In Authorized Redirect URIs, copy-paste the Redirect URL of SupportCenter plus.

• Click Save.




You have now configured GSuite as the authorization server for your organization using Gmail as the mail server.
